TECHNICAL SPECIFICATIONS
Format: 19-Inch 1U Rackmount Unit
Channels: 8 Independent Microphone / Line Preamplifiers
Input Stage: Ultra-low noise THAT 1512 IC (as used in SSL SuperAnalogue™ and Grace Design architectures)
Output Stage: Electronically balanced THAT 1646 IC
Gain Range: Continuous 0 dB to 55 dB per channel
Power Supply Architecture: Isolated multi-rail system (+/-15V Audio, +48V Phantom, +12V Relays, +5V LEDs)
Connectivity:
DB25 Line Inputs & Outputs (Tascam Wiring Standard)
Rear XLR Microphone Inputs / TRS Line Inputs
DETAILED FEATURES
Eight Fully Featured Preamplifier Channels:
Precision Gain Control: 0–55 dB continuous gain range utilizing high-quality Polyshine and Alps Alpine potentiometers.
Variable High-Pass Filter: 10Hz – 250Hz sweep range with a steep 24dB/octave slope for precise low-end cleanup.
48V Phantom Power: Independent relay-switched phantom power per channel for condenser mics and active DI boxes.
Polarity Invert (Phase): Relay-switched polarity flip per channel.
-20dB Input Pad: Relay-switched attenuation for high-output microphones and hot Line signals.
Short Signal Path Topology: Relay-controlled switching keeps audio traces minimal and isolated from front-panel switch noise.

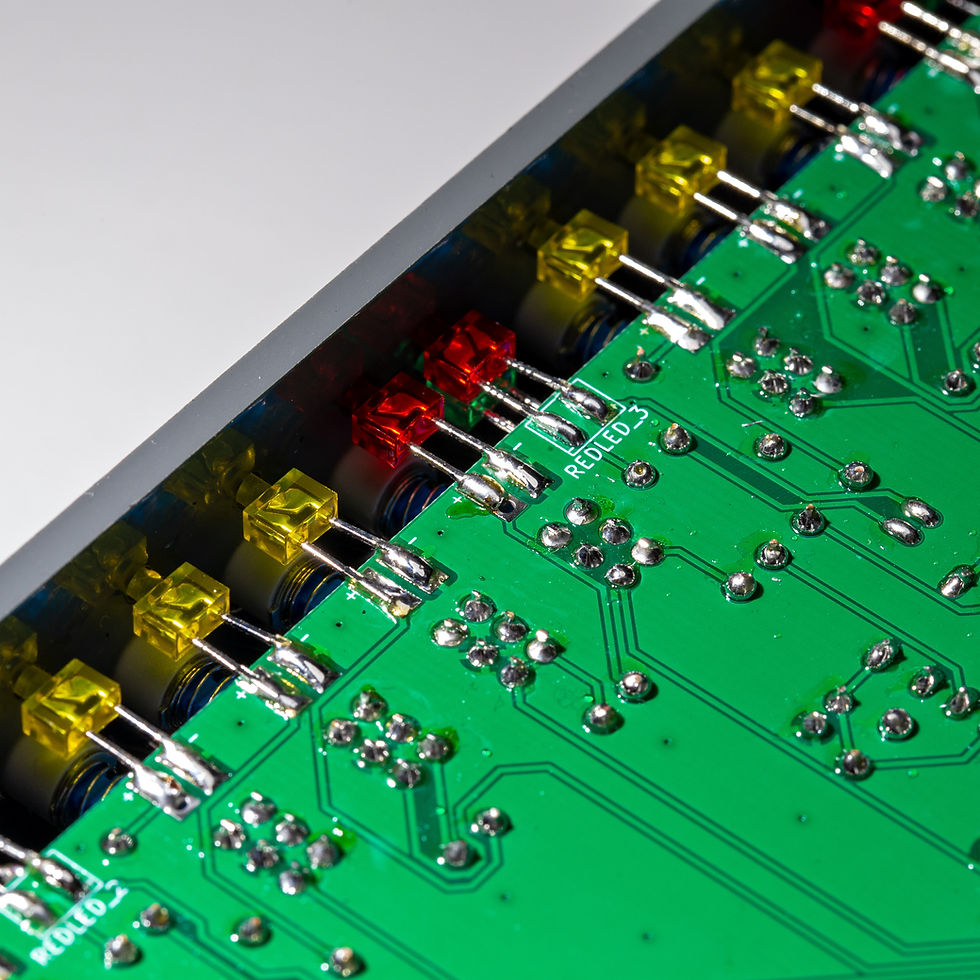

Real-Time LED Metering: Dual-LED level indicators (Signal / Peak) per channel for accurate input gain staging.
Audio-Grade Components: Built with audio-grade Nichicon capacitors, precision resistors, and heavy-duty pots.
WHAT'S INCLUDED IN THE KIT?
This is a Full 19" Rackmount DIY Kit including all parts for a successful build:
Powder-coated 19" 1U rack enclosure with high-quality printed front panel
Complete set of PCBs (Mainboard, Channel boards, Power Supply)
All electronic components (resistors, Audio-Grade Nichicon capacitors, ICs, THAT-chips, relays)
Heavy-duty power transformer / PSU components
Full set of high-quality Sifam control knobs and switches
(Note: This product requires assembly and soldering skills. Interactive assembly guides are available in our Build Manuals section.
Help yourself and others in the corresponding GDIY Help Thread
