TECHNICAL SPECIFICATIONS

• Format: 3-slot 500-Series enclosure (desktop or 19" rackmount)

• Compatibility: VPR Alliance Standard 500-Series modules

• Enclosure: Lightweight, ultra-durable powder-coated aluminum chassis

• Audio I/O: Premium Neutrik XLR and Neutrik 1/4" Jack connectors

• Power Distribution:

  • Multi-rail LED power status indicators (+16 V, -16 V, +48 V)

  • THRU XLR power output for daisy-chaining up to 3 racks (max 11 modules total)

• Routing Features: Channel FEED switches and stereo LINK switches

DETAILED FEATURES

• FEED Switch Routing: Daisy-chain Channel 1 into Channel 2, or Channel 2 into Channel 3 at the press of a switch – no patch cables required for creating custom channel strips

• Stereo Compressor LINK:  LINK switches connect sidechain control voltage between adjacent slots for perfectly balanced stereo compression

• Power Daisy-Chaining (THRU power socket): Expand your setup on the fly. Connect up to three X530 racks together using a single external X-VPR power supply.

• Rugged & Lightweight Build: Made from high-grade powder-coated aluminum to keep weight low while protecting sensitive modules during transport

• Pristine Signal Quality: Fitted exclusively with high-end Neutrik XLR and TRS jacks to guarantee maximum connection reliability

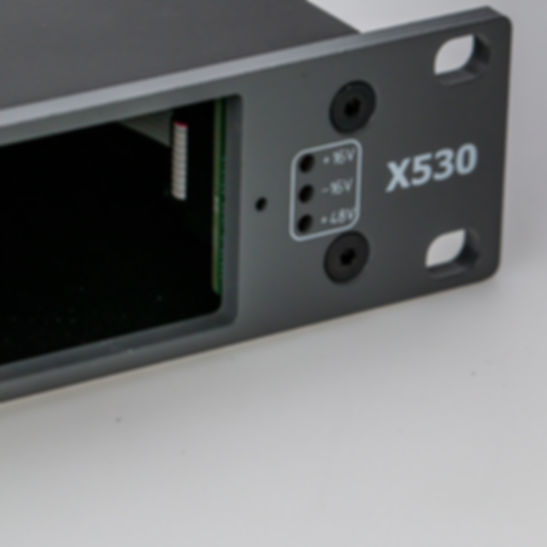

• Real-Time Visual Monitoring: Bright front/board LEDs provide instant verification of all critical power rails (+16 V, -16 V, +48 V)

WHAT'S INCLUDED IN THE KIT?

This is a complete DIY enclosure kit including:

• Powder-coated aluminum 3-slot chassis

• Main power distribution PCB with edge connectors and Neutrik I/O

• FEED and LINK switching hardware

• Multi-rail status LED indicators

• All necessary assembly screws and mounting hardware

(Note: Requires an external X-VPR power supply unit to operate. Interactive assembly guides are available in our Build Manuals section.)
