Simple, Affordable and Ultra-Reliable 2520 and 990 Op-Amp Solution

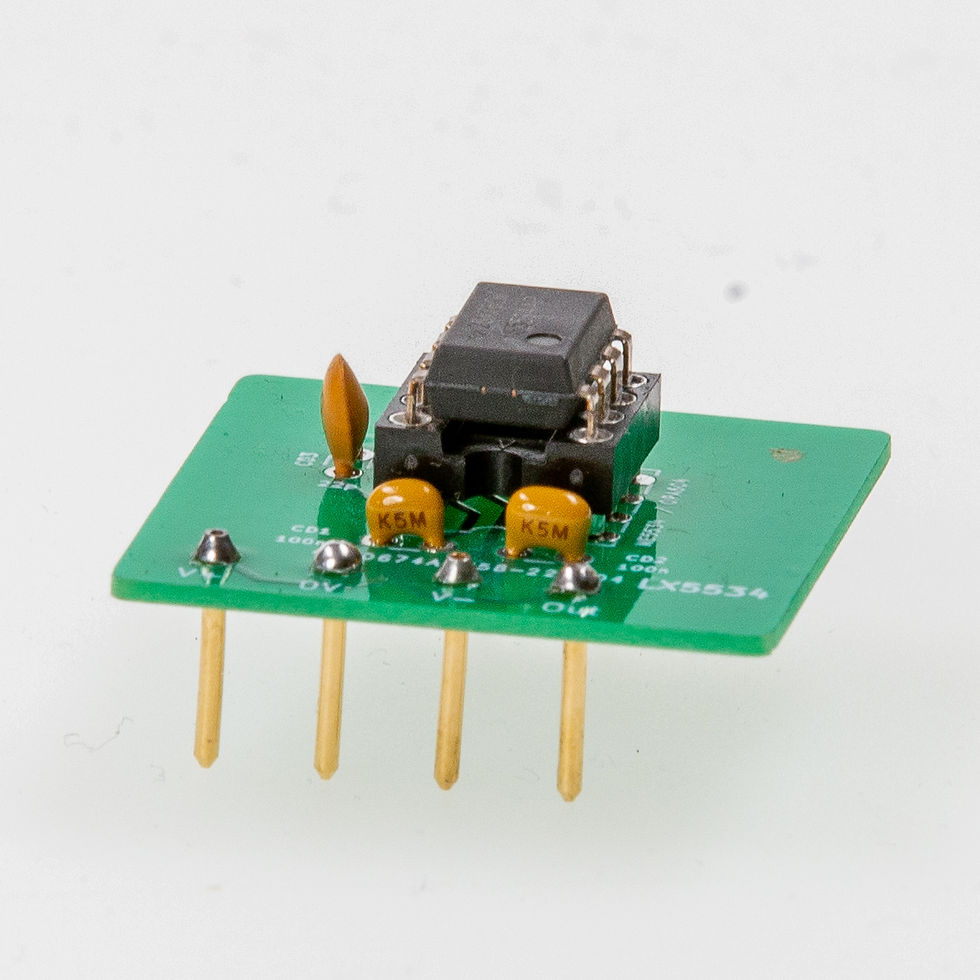

The LX5534 is a cost-effective alternative and direct replacement adapter for standard 2520 and 990 discrete operational amplifier sockets. It allows you to drop classic monolithic IC op-amps such as the included NE5534A or the high-performance OPA134 directly into any equipment utilizing a standard 6-pin DOA footprint.

Whether you need a reliable, budget-friendly op-amp to test newly built 500-series modules, want an ultra-low power consumption alternative, or simply prefer the clean, dependable response of iconic IC op-amps, the LX5534 provides a straightforward solution.

With a tiny 28 mm by 28 mm footprint, high-quality gold-plated pins, and low current draw, the LX5534 kit is an essential utility for any audio DIY workbench or custom gear build.

TECHNICAL SPECIFICATIONS

• Format: IC-based operational amplifier adapter for discrete 2520 and 990 footprints

• Pinout and Footprint: Standard 6-pin 2520 and 990 DOA socket footprint with heavy-duty gold-plated pins

• Included Op-Amp: Low-noise NE5534A with DIP-8 socket included

• Alternative IC Compatibility: OPA134, OPA604, or any pin-compatible single DIP-8 op-amp

• Supply Voltage: ±12 V to ±16 V DC

• Quiescent Current Draw: Extremely low ±10 mA at 16 V

• Dimensions: 28 mm x 28 mm

DETAILED FEATURES

• Budget-Friendly DOA Replacement: Perfect for testing new builds or replacing expensive discrete op-amps without breaking the bank

• Low Power and Cool Running: Consumes a fraction of the power of full discrete designs, making it ideal for high-density racks or power-sensitive setups

• IC Flexibility: Swap between the punchy industry-standard NE5534A or the smooth FET-input OPA134 to customize your signal path

• Gold-Plated Pins: Ensures flawless conductivity, zero corrosion, and long-lasting connection stability in standard DOA sockets

• Universal Compatibility: Fits into all standard 2520 and 990 socket footprints including Link Audio PI512, PI312, CAPI, API, and custom DIY gear

WHATS INCLUDED IN THE KIT

This DIY kit contains all necessary parts to build your LX5534 module:

• LX5534 Adapter PCB

• Low-noise NE5534A operational amplifier IC

• High-quality DIP-8 IC socket

• Set of gold-plated connector pins

• Power decoupling capacitors

(Note: Requires basic soldering skills. Interactive assembly guides are available in our Build Manuals section.)

Product name: LX5534 Product identifier: DOA5534X001/DOA5534X002/DOA5534X003/DOA5534X004 Manufacturer: Link Audio Design, August-Bebel-Str.18, 08373 Remse, linkaudiodesign@gmail.com
